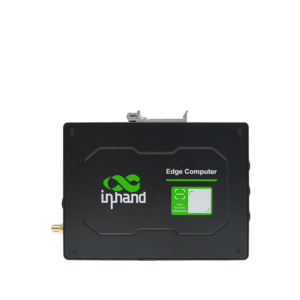

Energy Gateway
Utilizing ARM architecture, the Energy Gateway offers a variety of interface, network, performance, and edge application options, ensuring seamless integration from edge to cloud. It’s perfectly suited for modern energy management applications.
Multi-network access and reliable data tansmission
- Global 5G/4G cellular access: Ensures high-availability Internet access worldwide.
- Versatile network support: Supports Ethernet and Wi-Fi, with mutual backup for wired, cellular, and Wi-Fi networks.
- Dual SIM backup: Supports dual SIM card cellular network backup for enhanced reliability.
Enhanced data management with InHand DeviceSupervisor™ Agent
- Built-in Agent Service: No programming required; simple configuration for seamless cloud data integration.
- Local Data Preprocessing: Reduces upload traffic, alleviates cloud load, and cuts operating costs.
- Protocol Support: Compatible with Modbus RTU/TCP/ASCII, OPC UA, ISO on TCP, and more.
- Cloud Platform Integration: Supports AWS, Azure, Ali, and other major IoT cloud platforms for diverse solutions.
Sicherheitsverstärkung zum Schutz der digitalen Wirtschaft
- Wir bieten weiterhin Sicherheitspatches für Linux-Systeme und Dienste zur Behebung von Sicherheitslücken an, damit Sie sich keine Sorgen machen müssen.
- Unterstützung von Secure Boot zum Schutz vor Malware-Injection-Angriffen
- Integrierter TPM 2.0 Sicherheitschip zur Gewährleistung der Geräte- und Datensicherheit
Custom development with Linux distribution
- Linux Debian OS: Enables customizable application development.
- Flexible Programming: Supports free programming in various high-level languages, facilitating rapid product development with Debian’s robust community support.
Entwickelt für raue Umgebungen
EMC 3, breiter Temperaturbereich -20~70 °C, großer Spannungsbereich der Stromversorgung
- Lüfterlose Konstruktion
Eagle Energy Manager cloud service: Empowering ESG initiatives
- Comprehensive Monitoring: Real-time device status updates via web SCADA and mobile app.
- Energy Efficiency Analysis: Energy flow diagrams and YoY/MoM comparison tools to identify abnormal consumption.
- Intelligent Energy-Saving: Optimizes key devices like air conditioning in real-time, reducing energy waste.
- Operational Insights: Analyzes factory operations and provides optimization suggestions for energy savings and cost reduction.
Wichtige Parameter
 | ||
| MODEL | EC322 | |
| Prozessor | CPU | ARM Cortex-A53, Einzelkern,1.4GHz |
| Gedächtnis | RAM | 1GB |
| FLASH | 8GB eMMC | |
| Grafiken | HDMI | / |
| Celullar | Cellular | 4G |
| Schnittstelle | Ethernet | 2*100Mbps Ethernet-Anschluss, RJ45-Anschluss |
| Serie | 1*RS-232/485+1*RS-485, isoliert, Klemmleistenanschluss | |
| USB | 1*USB 2.0 | |
| CAN | 2*CAN FD (wahlweise) | |
| I/O | 4*DI+4*DO, isolated, optional | |
| Wi-Fi | STA, 802.11ac/a/b/g/n, 2.4G/5G | |
| Bluetooth | BT 4.2 | |
| GPS | JA | |
| MIC | / | |
| SPK | / | |
| LoRa | JA (fakultativ) | |
| Schaltfläche | 1*Rückstellung, 1*BENUTZER | |
| Strom | Stromversorgungsspannung | DC-Eingang: ungeregelte 9V bis 48V Schutz vor Verpolung |
| Umwelt | Betriebstemperatur | -20~70°C |
| Betriebssystem | Betriebssystem | Linux |
