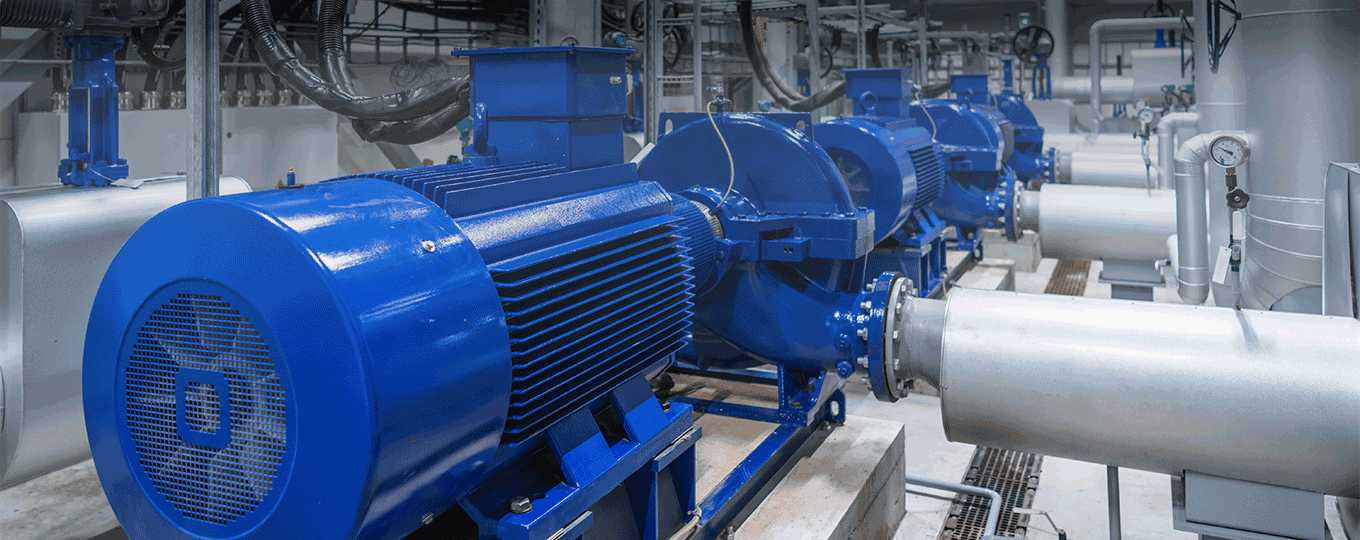

Salas de bombas inteligentes para suministro de agua secundario
The IG902 edge computing gateway connects onsite PLCs to the cloud, collects and processes data locally, and uploads it to the cloud, ensuring clean, high-quality drinking water for urban residents.
Contexto
A local government office issued a plan to construct secondary water supply facilities to strengthen the safety of the “last mile” water supply, improve water quality, and enhance public security and well-being. To achieve unified construction and management of secondary water supply, ensure compliance with water pressure and quality standards, and guarantee safety, a local water group aims to improve water supply quality and user experience through innovative technologies and services.
Specifically, the group seeks to monitor equipment operation 24/7, track real-time water quality data, and detect equipment abnormalities and water quality issues promptly. This will ensure a safe and reliable water supply for residents.
Requisitos del cliente
Real-time Monitoring and Data Control
Lograr el monitoreo remoto y la gestión de múltiples salas de bombas distribuidas en diversas comunidades, permitir la observación en tiempo real del estado operativo y la calidad del agua, aumentando la eficiencia en la gestión, y asegurando así servicios de suministro de agua de alta calidad para los residentes.
Prompt Alerts, Lasting Water Quality
Los servicios de alerta en línea permiten al personal de mantenimiento detectar rápidamente anomalías en la calidad del agua, evitando así la contaminación o deterioro de la calidad del agua y salvaguardando de manera efectiva la calidad del agua.
Análisis inteligente para una mejor sostenibilidad
Lograr un diagnóstico inteligente del estado operativo del sistema de suministro de agua a través de una exploración y análisis exhaustivos de datos. Esto ayuda a mejorar la toma de decisiones, reducir el desperdicio de recursos y facilitar la optimización del sistema de suministro de agua.
Solución
InHand’s solution consists of PLCs, inverters, HMIs, a video monitoring system, the InHand switch ISE1005D, the IG902 edge computing gateway, and a remote platform for secondary water supply.
PLCs, HMIs, and cameras in the pump room connect to the IG902 via ISE1005D. The IG902 collects thousands of equipment operation variables, including pH levels, turbidity, and pump operating time, at intervals of seconds.
Collected data is processed at the edge for calculations and water quality alarms. Processed data is sent to the cloud (AWS, Azure, or private clouds) via 4G or wired networks. The cloud platform allows remote monitoring of pump rooms and responds to control commands. Maintenance staff can use a mobile app for real-time status updates. Malfunction data is sent to the dispatch center, enabling remote issue resolution. The IG902 edge gateway in different pump rooms can be remotely upgraded and configured using the Device Manager, and the InConnect VPN channel enables remote PLC debugging and updates.
Capacidades
High-Speed, Secure and Reliable Network Connectivity
The IG902 IoT edge gateway supports LTE, Wi-Fi, and wired connections. It incorporates multiple link redundancy technologies to ensure consistently high-speed and reliable network connections, guaranteeing uninterrupted device operation within a continuous network transmission environment.
Supports Key Protocols and Clouds for Easy Monitoring
The IG902 industrial IoT gateway supports major PLC protocols such as those of Siemens, Mitsubishi, Omron, etc. making it easy to send device data to the cloud for remote monitoring and preventive maintenance, reducing operational costs and improving customer satisfaction.
"Manutención remota de dispositivos del cliente con InConnect
El IG902 es compatible con el servicio de acceso remoto InConnect, proporcionando un canal de mantenimiento remoto a través de VPN para actualizar y depurar programas de PLC y responder rápidamente a fallas en dispositivos.
Gestión sencilla para implantaciones a gran escala
With web-based configuration, the IG902 gateway is user-friendly. The Device Manager efficiently centralizes the management of numerous devices, allowing real-time monitoring of gateway operational status from anywhere.
