Gateway de Borde para IoT
The InHand IoT Edge Gateway bridges the gap between industrial field equipment and the cloud, enabling seamless connectivity and efficient operations. Widely used across manufacturing, energy, agriculture, and healthcare, it empowers industries with reliable data transmission and edge computing capabilities.
Configuración sencilla para la adquisición de datos de borde a nube
- Intuitive setup: The InGateway features a user-friendly, visualized configuration interface.
- Protocol support: Compatible with multiple industrial and electrical protocols, including Modbus, ISO on TCP, OPC UA, and DNP3, for seamless data acquisition.
- Edge computing & cloud integration: Supports MQTT for edge computing and data pre-processing, ensuring smooth cloud connectivity.
- Multi-cloud compatibility: Easily connects to leading IoT cloud platforms like AWS, Azure, and Thingsboard for concurrent operations.
Potentes capacidades de computación en el borde
- High-performance processing: Equipped with up to quad-core ARM Cortex-A7 processors for excellent data processing capacity.
- Ample memory: Features up to 1GB RAM to handle large datasets and complex edge computing tasks efficiently.
- Flexible storage options: Offers up to 8GB Flash storage with compatibility for SD cards and USB drives to meet diverse storage requirements.
Flexible development environment for custom applications
- Python programmable: Features flexible APIs for seamless application customization.
- Docker support: Enables rapid application migration and deployment.
- Cloud managed: Batch deploy Python applications via InHand clouds for efficient and centralized application management.
Extensive interfaces to serve diverse scenarios
- Internet connectivity: Availale with cellular, Ethernet, and Wi-Fi for reliable connectivity in various environments.
- Device integration: Multiple Ethernet and serial ports enable connection to a wide range of devices.
- Flexible I/O Connections: Includes 4*DI and 4*DO interfaces for adaptable input/output requirements.
- USB extension: Simplifies the connection of additional devices for enhanced functionality.
Stable and reliable for industrial applications
- Industrial-grade design: Built for challenging conditions with wide temperature and voltage ranges.
- High EMC resistance: Effectively withstands electromagnetic interference for stable performance.
- Fanless cooling: Ensures reliable operation with a maintenance-free design.
- IP30 protection: Offers dust and liquid resistance, ideal for rugged industrial environments.
¿Cuál es el Gateway adecuado para ti?
 |  |  | |

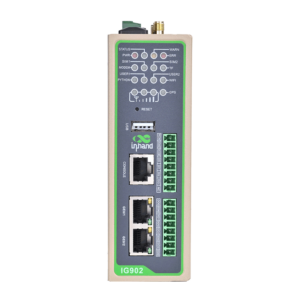

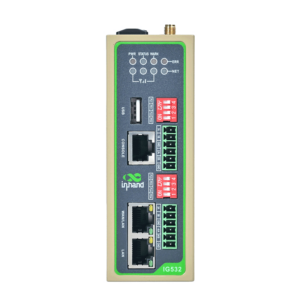

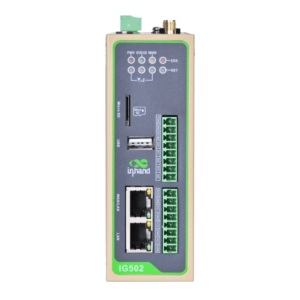

| Modelo | IG502 | IG532 | IG902 |
| CPU | ARM Cortex-A8 600MHz | ARM Cortex-A8 1GHz | ARM Cortex-A8 1GHz |
| RAM | 512MB | 512MB | 512MB/1GB |
| Storage | 8GB | 8GB | 8GB |
| ETH | 2*10/100Mbps | 2*10/100Mbps | 2*10/100/1000Mbps |
| Puerto serie | 1*RS-232 1*RS-485 or 2*RS-485 | 4*RS-485 | 1*RS-232, 1*RS-485 |
| I/O | 4*digital/ pulse input 3*digital/ pulse output 1*DO | / | 4*digital/ pulse input 3*digital/ pulse output 1*DO |
| Cellular Type | CAT1, CAT4, 5G (China only) | CAT1, CAT4, 5G (China only) | CAT4, CAT6 |
| Wi-Fi | STA/AP, 2.4G (802.11 b/g/n) | / | STA/AP, 2.4G&5G (802.11 ac/a/b/g/n) |
| Protocols | Modbus, EtherNet/IP, ISO on TCP, OPC UA, DLT645 -1997, DNP3, IEC 101, IEC 104, etc. | Modbus RTU/TCP, OPC UA Client, ISO on TCP, EtherNet/IP, IEC101, IEC103, IEC104, DLT645-1997, etc. | Modbus, EtherNet/IP, ISO on TCP, OPC UA, DLT645 -1997, DNP3, IEC 101, IEC 104, etc. |
| Open Platforms | Python | Python | Python, Docker |
| Resources → | Resources → | Resources → | |
| Datasheet → | Datasheet → | Datasheet → | |
| Comprar ahora | Comprar ahora |
Aplicaciones
Real-time visualization, predictive maintenance, and data-driven decision-making ensure streamlined factory operations.
Equipped with edge computing capabilities, the IG502 edge gateway pre-processes, filters and cleans data before sending them to the cloud, relieving the pressure of the data center and enhancing efficiency.
Con potentes capacidades de computación en el borde, soporte para múltiples protocolos industriales y nubes de IoT, diseño industrial, el IG502 ofrece una solución confiable de monitoreo remoto para compresores de aire.
